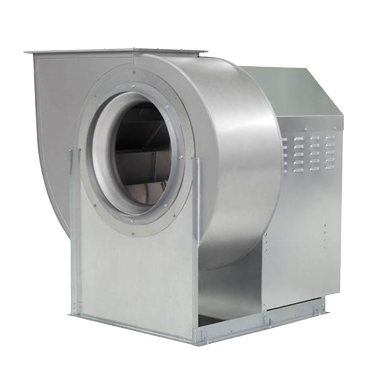

FABI-RM
General and Restaurant Duty Utility Set
- Air Volume: 250 - 28,000
- Maximum SP: 6" wg. @ standard air density
ADDITIONAL INFORMATION
- Deep Cleaning Instructions »
- Deep Cleaning Instructions »
- Lifting Points »
- Frequently Asked Fan Questions »
- Performance Data »
- Request Product Information »
DRAWINGS
- Isolator Detail Drawing »
- Exploded Parts Detail »
- Exploded View Belt Drive Small »
- Exploded View Belt Drive Large »
- Exploded View Direct Drive Small »
- Exploded View Direct Drive Large »
- Exploded View Extension Assembly »
- Exploded View Inlet Connection »
- Exploded View Inlet Service Duct »
- Exploded View Rain Cap Assembly »
- Submittal Drawings »
OPERATION & INSTALLATION MANUALS
WRITTEN SPECIFICATIONS
FEATURES & BENEFITS
- Use with General Ventilation (UL705) and ULC-S645
- Vented Motor Cover and Continuously Sealed Housing for added weather protection
- Scroll and Motor Compartment Connected for added Structure
- Easily Accessible Clean Out Door and Motor Access from 3 Sides
- Standard 2" Grease Drain
- Standard Emergency Disconnect Switch
- Standard Heat Slinger and Heavy Duty Pillow Block Bearings for Belt Drive option
- Standard Shaft Seal for Belt Drive option
- Standard Pivot Plates for easy Belt Adjustment
- Double Groove Pulleys standard for 2 HP and Above Motors
- Discharge Outlet Flanges Available on All Sizes
- Temperature Ratings - Aluminum Wheel, 350 degrees F
OPTIONS
- Belt Drive
- Belt Drive High Pressure
- Direct Drive

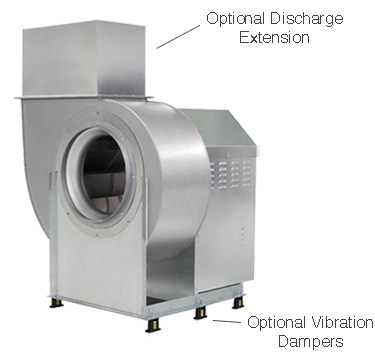

- Discharge Extension
- Discharge Screens
- Discharge Shutter (UL705 Only)
- Discharge Configurations: Vertical, Horizontal Left or Horizontal Right
- Vibration Isolators
- Extended Lube Lines

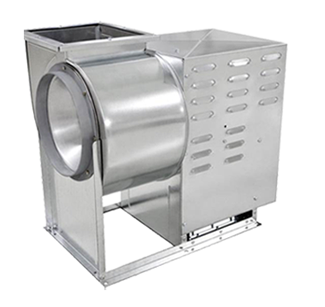

ADDITIONAL IMAGES
CERTIFICATIONS
|
Models AM-USBI11DD-RM through AM-USBI20DD-RM are ETL Listed under file numbers 103336443COL-001 and 102628244PRT-001 and comply with UL705 (electrical), and ULC-S645 Standards and CSA Std C22.2, No 113. |
|
